國産化AES系列是中逸光(guā πng)為客戶研發的全國産化(huà✔≈)物料設計的AC/DC電(✘♠diàn)源模塊。該系列電源具有全球輸入電(d>♠iàn)壓範圍、交直流兩用、低功耗、高(gāo$¶α)效率、高可靠性、安全¥↑隔離等優點。産品安全可靠，¥λ±₽抗浪湧性能優越，EMC 及安全規格滿足IEC/EN61000-4、CISPR22/>קEN55022、UL62368 和EN62368等标準。
| 系列标題 | 功率 (W) | 輸入電壓 (VAC) | 輸入電壓 (VDC) | 輸出電壓 (VDC) | 輸出電流 | 效率% | 隔離電壓 (VAC) | 封裝尺寸 (mm) | 資料下載 (3D/PCB封裝庫/原理圖庫) | 認證/标準 | 技術手冊 | 樣品申請 |
| AES90-SXX | 90 | 85-305 | 100-400 | 12-48 | 展開 | 展開 | 4000 | 87*52*29.5 | -- -- | -- | -- -- |  -- |
| AES60-SXX | 60 | 85-305 | 100-400 | 5-24 | 展開 | 展開 | 4000 | 87*52*29.5 | -- -- | -- | -- -- | -- |
| AES45-SXX | 45 | 85-305 | 100-400 | 5-24 | 展開 | 展開 | 4000 | 87*52*29.5 | -- -- | -- | -- -- | -- |

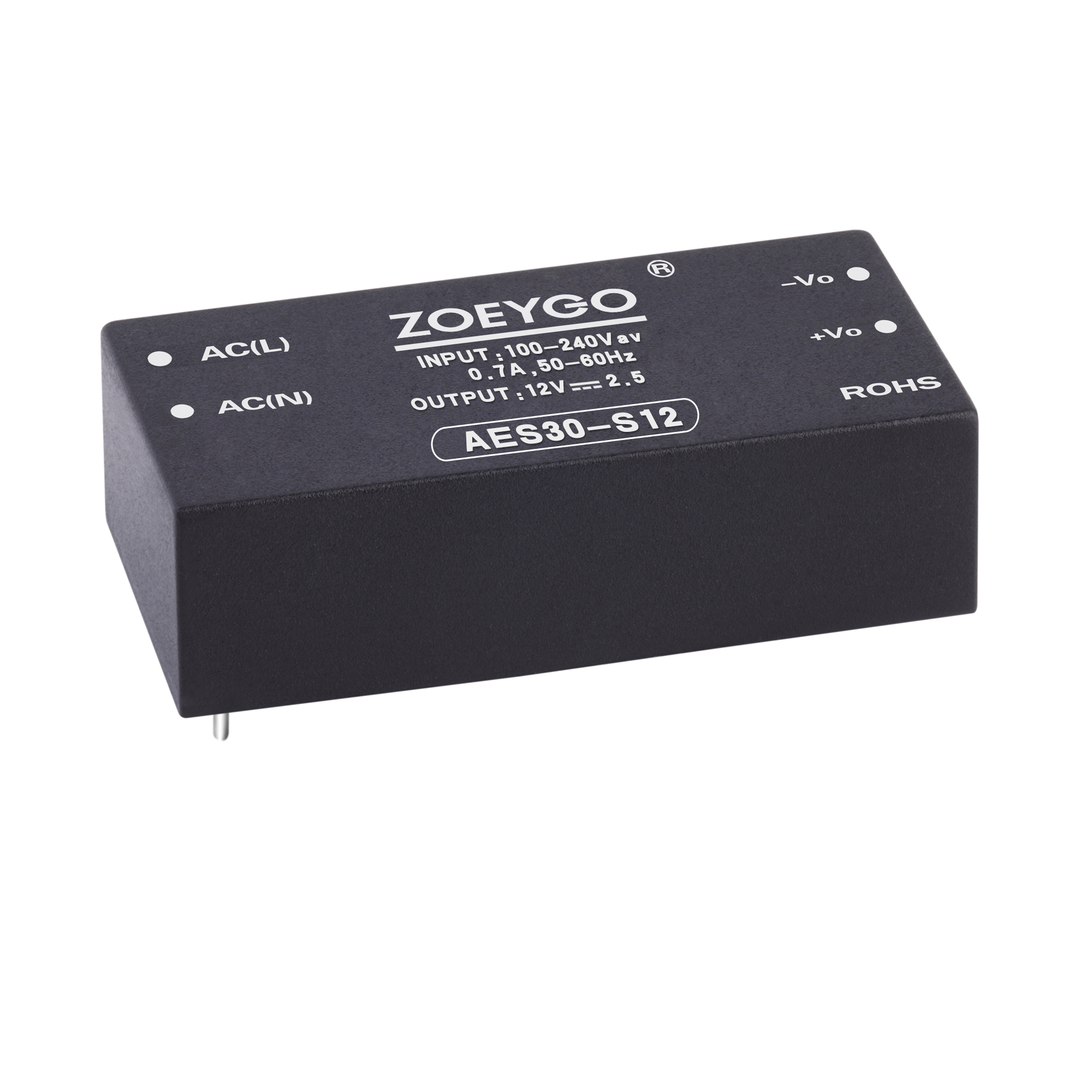

AES30-SXX AES30-SXX | 30 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 4000 | 69.5*35*24 | -- -- | -- |  -- | -- |
| AES30-S24 | 30 | 85-264 | 100-370 | 24 | 1.25 | 89 | 4000 | 69.5*35*24 | -- | | | |
| AES30-S15 | 30 | 85-264 | 100-370 | 15 | 2 | 88 | 4000 | 69.5*35*24 | -- | | | |
| AES30-S12 | 30 | 85-264 | 100-370 | 12 | 2.5 | 87 | 4000 | 69.5*35*24 | -- | | | |
| AES30-S05 | 30 | 85-264 | 100-370 | 5 | 6 | 84 | 4000 | 69.5*35*24 | -- | | | |
AES25-SXX AES25-SXX | 25 | 85-264 | 100-370 | 12-24 | 展開 | 展開 | 4000 | 54.5*29.2*23.6 | -- -- | -- | -- | -- |
| AES25-S24 | 25 | 85-264 | 100-370 | 24 | 1 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES25-S15 | 25 | 85-264 | 100-370 | 15 | 1.66 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES25-S12 | 25 | 85-264 | 100-370 | 12 | 2.1 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-SXXR2 AES20-SXXR2 | 20 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 4000 | 54.5*29.2*23.6 | -- -- | -- | -- | -- |
| AES20-S24R2 | 20 | 85-305 | 100-400 | 24 | 0.83 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S15R2 | 20 | 85-305 | 100-400 | 15 | 1.33 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S12R2 | 20 | 85-305 | 100-400 | 12 | 1.66 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S09R2 | 20 | 85-305 | 100-400 | 9 | 2.22 | 85 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S05R2 | 20 | 85-305 | 100-400 | 5 | 4 | 85 | 4000 | 54.5*29.2*23.6 | -- | | | |
AES20-SXX AES20-SXX | 20 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 4000 | 54.5*29.2*23.6 | -- -- | -- | -- | -- |
| AES20-S24 | 20 | 85-264 | 100-370 | 24 | 0.83 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S15 | 20 | 85-264 | 100-370 | 15 | 1.33 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S12 | 20 | 85-264 | 100-370 | 12 | 1.66 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S09 | 20 | 85-264 | 100-370 | 9 | 2.22 | 85 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S05 | 20 | 85-264 | 100-370 | 5 | 4 | 85 | 4000 | 54.5*29.2*23.6 | -- | | | |
AES15-SXX AES15-SXX | 15 | 85-305 | 100-400 | 3.3-24 | 展開 | 展開 | 3000 | 51*25.5*15.5 | -- -- | -- | -- | -- |
| AES15-S24 | 15 | 85-305 | 100-400 | 24 | 0.62 | 86 | 3000 | 51*25.5*15.5 | -- | | | |
| AES15-S15 | 15 | 85-305 | 100-400 | 15 | 1 | 86 | 3000 | 51*25.5*15.5 | -- | | | |
| AES15-S12 | 15 | 85-305 | 100-400 | 12 | 1.25 | 86 | 3000 | 51*25.5*15.5 | -- | | | |
| AES15-S09 | 15 | 85-305 | 100-400 | 9 | 1.66 | 80 | 3000 | 51*25.5*15.5 | -- | | | |
| AES15-S05 | 15 | 85-305 | 100-400 | 5 | 3 | 78 | 3000 | 51*25.5*15.5 | -- | | | |
| AES15-S03 | 15 | 85-305 | 100-400 | 3.3 | 3 | 75 | 3000 | 51*25.5*15.5 | -- | | | |
AES12-SXXR2 AES12-SXXR2 | 12 | 85-305 | 100-400 | 5-24 | 展開 | 展開 | 3000 | 51*25.5*15.5 | -- -- | -- | -- | -- |
| AES12-S24R2 | 12 | 85-305 | 100-400 | 24 | 0.5 | 85 | 3000 | 51*25.5*15.5 | -- | | | |
| AES12-S15R2 | 12 | 85-305 | 100-400 | 15 | 0.8 | 83 | 3000 | 51*25.5*15.5 | -- | | | |
| AES12-S12R2 | 12 | 85-305 | 100-400 | 12 | 1 | 83 | 3000 | 51*25.5*15.5 | -- | | | |
| AES12-S09R2 | 12 | 85-305 | 100-400 | 9 | 1.33 | 82 | 3000 | 51*25.5*15.5 | -- | | | |
| AES12-S05R2 | 12 | 85-305 | 100-400 | 5 | 2.4 | 82 | 3000 | 51*25.5*15.5 | -- | | | |

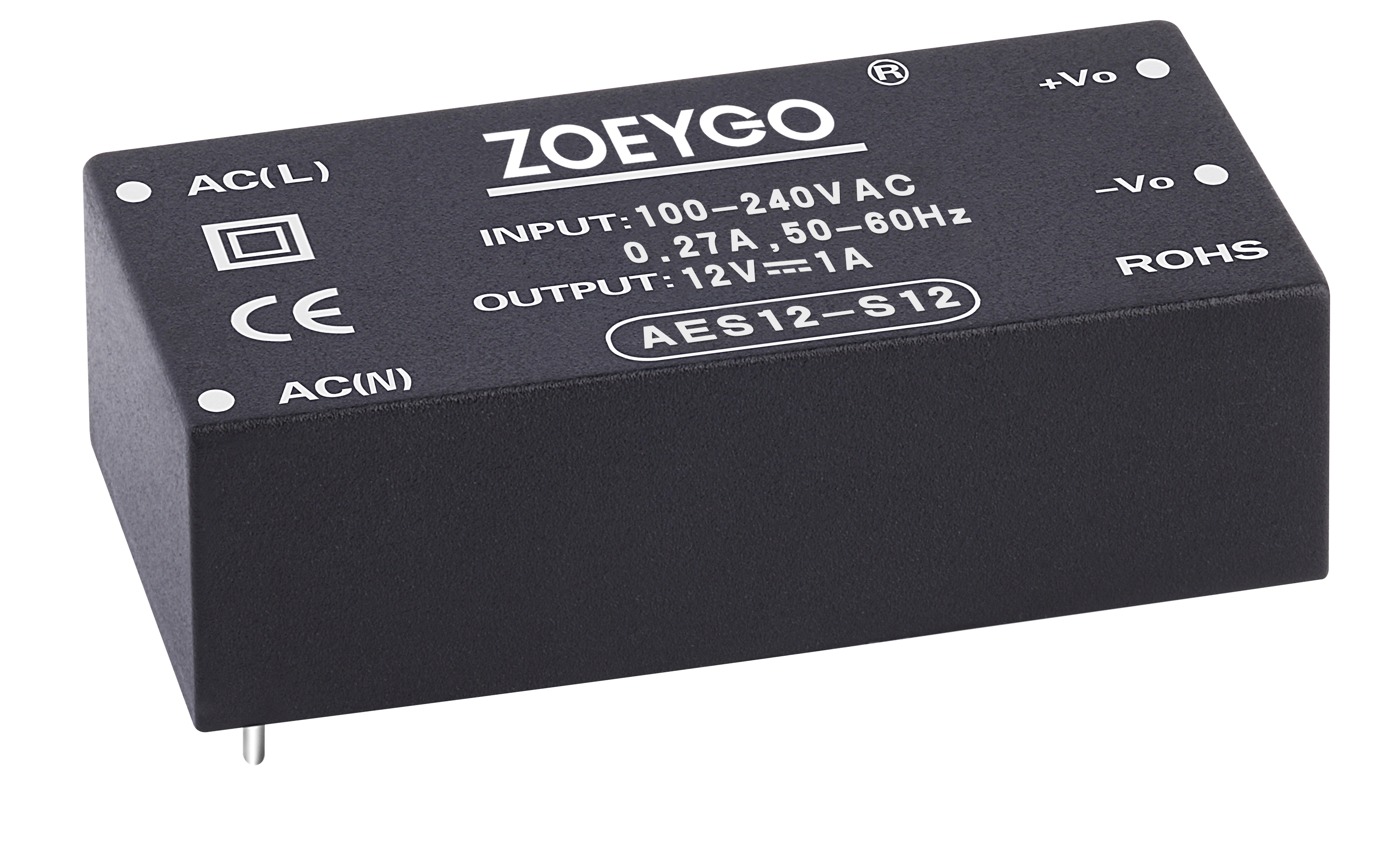

AES12-SXX AES12-SXX | 12 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 3000 | 51*25.5*15.5 | -- -- | -- | -- | -- |
| AES12-S24 | 12 | 85-264 | 100-370 | 24 | 0.5 | 85 | 3000 | 51*25.5*15.5 | -- | | | |
| AES12-S15 | 12 | 85-264 | 100-370 | 15 | 0.8 | 83 | 3000 | 51*25.5*15.5 | -- | | | |
| AES12-S12 | 12 | 85-264 | 100-370 | 12 | 1 | 83 | 3000 | 51*25.5*15.5 | -- | | | |
| AES12-S09 | 12 | 85-264 | 100-370 | 9 | 1.33 | 80 | 3000 | 51*25.5*15.5 | -- | | | |
| AES12-S05 | 12 | 85-264 | 100-370 | 5 | 2.4 | 78 | 3000 | 51*25.5*15.5 | -- | | | |

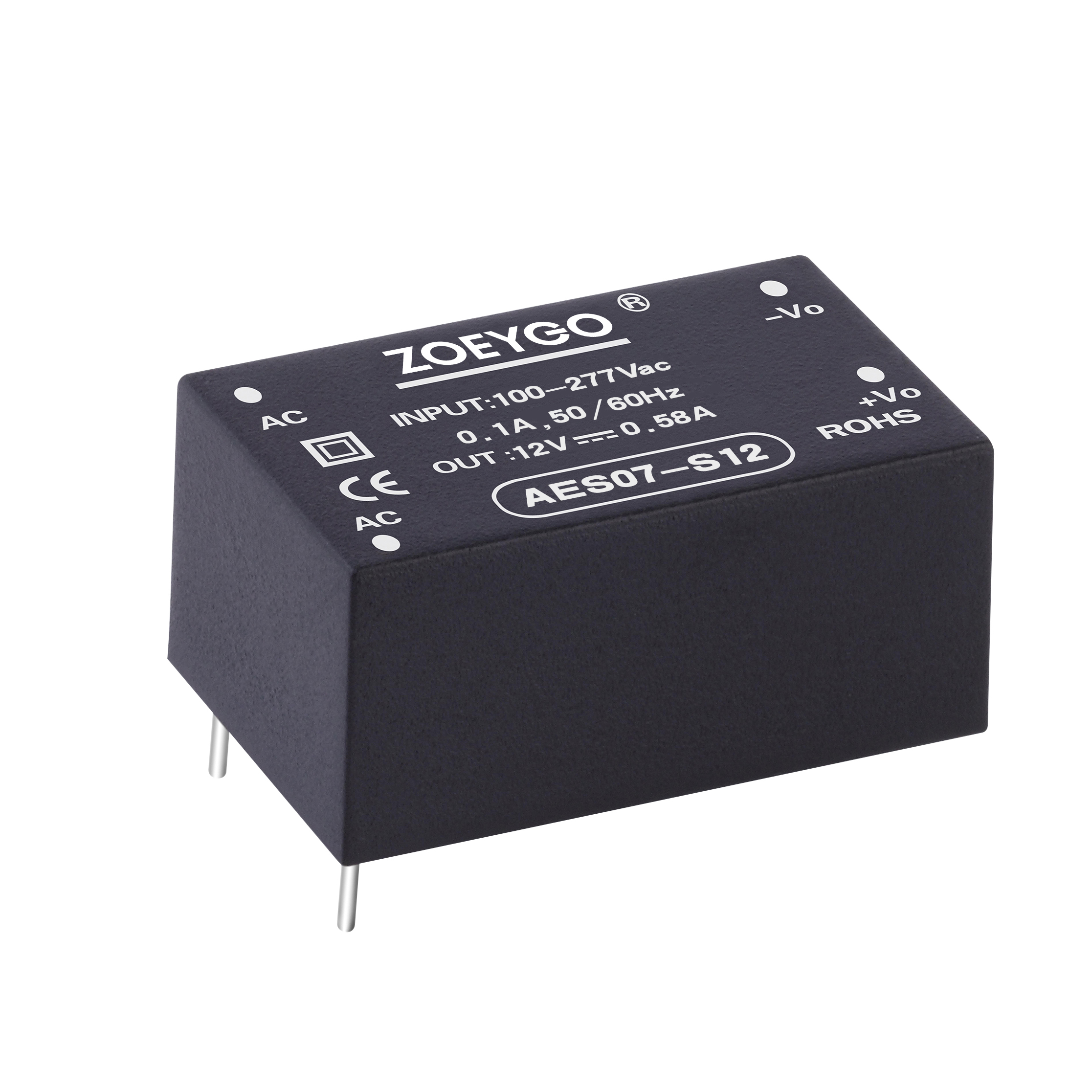

AES07-SXX AES07-SXX | 7 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 3000 | 39*25*22 | -- -- | -- | -- | -- |
| AES07-S24 | 7 | 85-264 | 100-370 | 24 | 0.29 | 83 | 3000 | 39*25*22 | -- | | | |
| AES07-S15 | 7 | 85-264 | 100-370 | 15 | 0.46 | 80 | 3000 | 39*25*22 | -- | | | |
| AES07-S12 | 7 | 85-264 | 100-370 | 12 | 0.58 | 78 | 3000 | 39*25*22 | -- | | | |
| AES07-S09 | 7 | 85-264 | 100-370 | 9 | 0.77 | 78 | 3000 | 39*25*22 | -- | | | |
| AES07-S05 | 7 | 85-264 | 100-370 | 5 | 1.4 | 77 | 3000 | 39*25*22 | -- | | | |
AES06-DXX AES06-DXX | 6 | 85-264 | 100-370 | ±5-±24 | 展開 | 展開 | 3000 | 51*25.5*15.5 | -- -- | -- | -- | -- |
| AES06-SXX AES06-SXX | 6 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 3000 | 51*25.5*15.5 | -- -- | -- | -- | -- |
| AES06-S24 | 6 | 85-264 | 100-370 | 24 | 0.25 | 84 | 3000 | 51*25.5*15.5 | -- | | | |
| AES06-S15 | 6 | 85-264 | 100-370 | 15 | 0.4 | 83 | 3000 | 51*25.5*15.5 | -- | | | |
| AES06-S12 | 6 | 85-264 | 100-370 | 12 | 0.5 | 82 | 3000 | 51*25.5*15.5 | -- | | | |
| AES06-S09 | 6 | 85-264 | 100-370 | 9 | 0.66 | 78 | 3000 | 51*25.5*15.5 | -- | | | |
| AES06-S05 | 6 | 85-264 | 100-370 | 5 | 1.2 | 75 | 3000 | 51*25.5*15.5 | -- | | | |
| AES05-DXX AES05-DXX | 5 | 85-264 | 100-370 | ±5-±24 | 展開 | 展開 | 3000 | 39*25*22 | -- -- | -- | -- | -- |

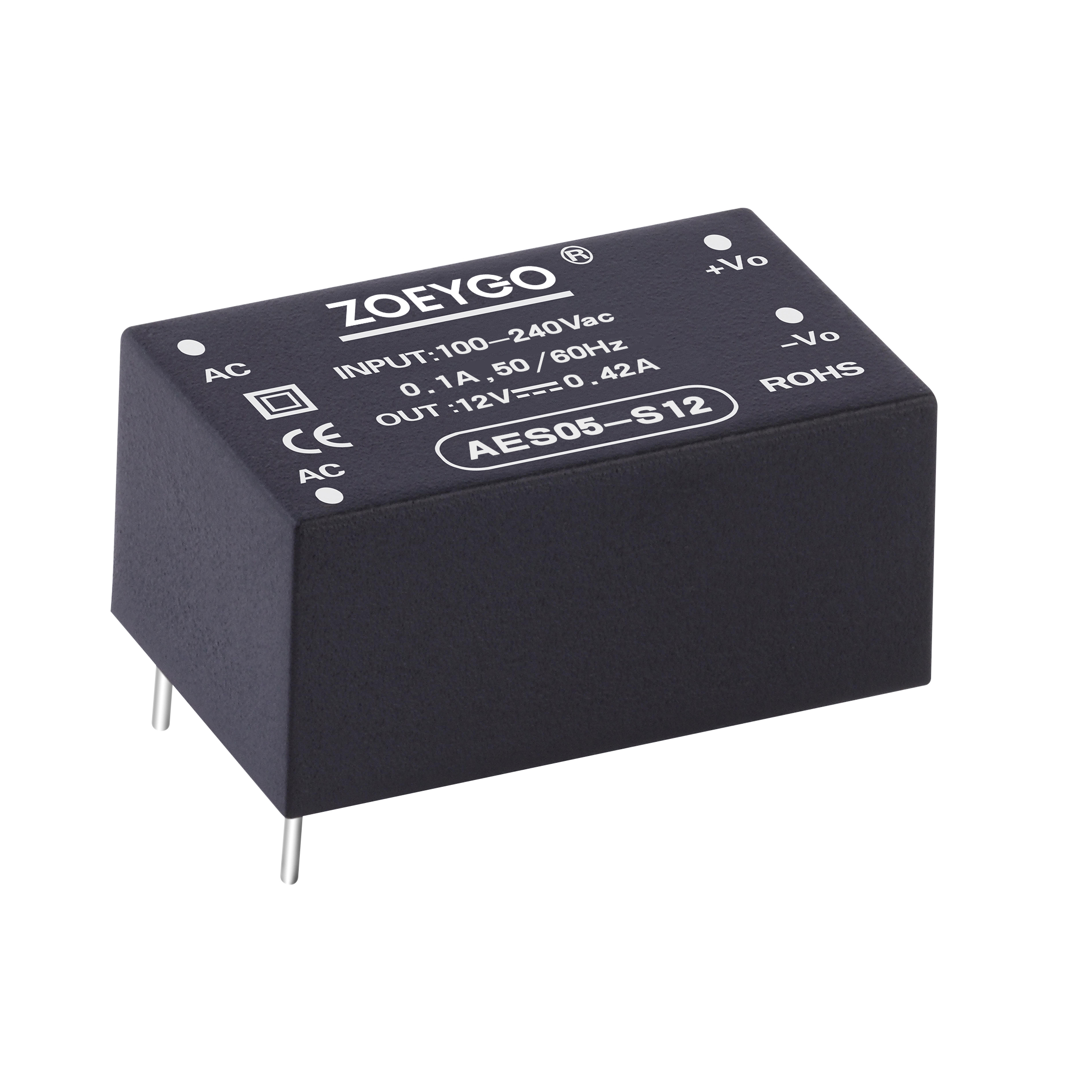

AES05-SXX AES05-SXX | 5 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 3000 | 37*24.5*15.5 | -- -- | -- | -- | -- |
| AES05-S24 | 5 | 85-264 | 100-370 | 24 | 0.21 | 80 | 3000 | 37*24.5*15.5 | -- | | | |
| AES05-S15 | 5 | 85-264 | 100-370 | 15 | 0.33 | 79 | 3000 | 37*24.5*15.5 | -- | | | |
| AES05-S12 | 5 | 85-264 | 100-370 | 12 | 0.42 | 78 | 3000 | 37*24.5*15.5 | -- | | | |
| AES05-S09 | 5 | 85-264 | 100-370 | 9 | 0.55 | 75 | 3000 | 37*24.5*15.5 | -- | | | |
| AES05-S05 | 5 | 85-264 | 100-370 | 5 | 0.8 | 69 | 3000 | 37*24.5*15.5 | -- | | | |

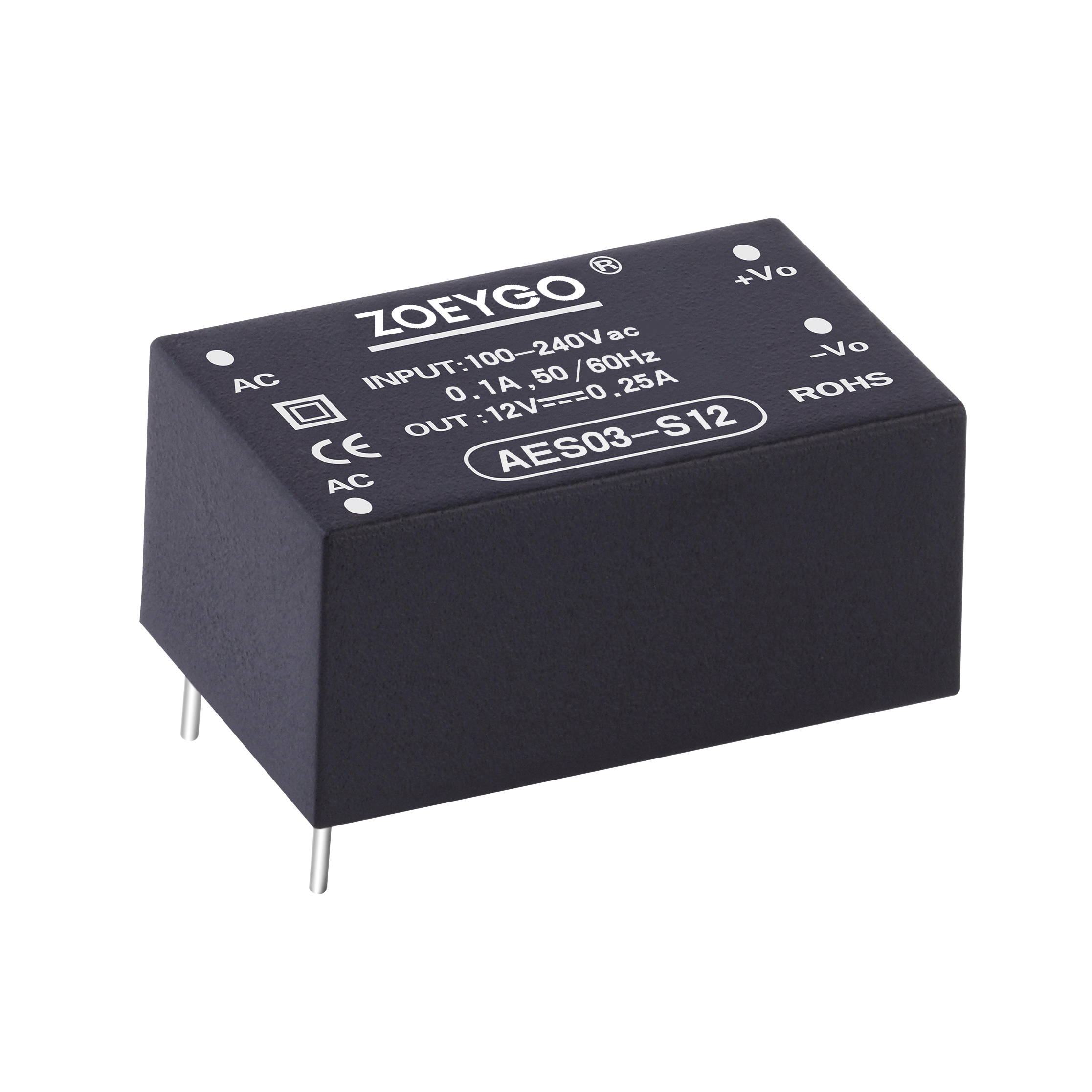

AES03-SXX AES03-SXX | 3 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 3000 | 32.5*20.5*15 | -- -- | -- | -- | -- |
| AES03-S24 | 3 | 85-264 | 100-370 | 24 | 0.12 | 75 | 3000 | 32.5*20.5*15 | -- | | | |
| AES03-S15 | 3 | 85-264 | 100-370 | 15 | 0.25 | 74 | 3000 | 32.5*20.5*15 | -- | | | |
| AES03-S12 | 3 | 85-264 | 100-370 | 12 | 0.25 | 73 | 3000 | 32.5*20.5*15 | -- | | | |
| AES03-S09 | 3 | 85-264 | 100-370 | 9 | 0.33 | 72 | 3000 | 32.5*20.5*15 | -- | | | |
| AES03-S05 | 3 | 85-264 | 100-370 | 5 | 0.6 | 68 | 3000 | 32.5*20.5*15 | -- | | |
