小型化ZPR系列産品是中逸光為(wèααβ£i)客戶提供的超小體積模塊電源，該系列具有極低'₩(dī)的空載損耗，高隔離耐壓等特點。産品安全可(k₹≈♥ě)靠，EMC 性能優異，廣泛應用于工&♦&$(gōng)業控制、醫療、電子通(tōngαβ>☆)訊、充電樁、電力儀表等行業中，如(©≈rú)應用于電磁兼容比較惡劣的環境時必須參考規格書(s÷εhū)應用電路。
| 系列标題 | 功率 (W) | 輸入電壓 (VAC) | 輸入電壓 (VDC) | 輸出電壓 (VDC) | 輸出電流 | 效率% | 隔離電壓 (VAC) | 封裝尺寸 (mm) | 資料下載 (3D/PCB封裝庫/原理圖庫) | 認證/标準 | 技術手冊 | 樣品申請 |
ZPR90-SXX ZPR90-SXX | 90 | 85-305 | 100-400 | 12-48 | 展開 | 展開 | 4000 | 87*52*29.5 | -- -- | -- |  -- |  -- |
| ZPR90-S48 | 90 | 85-305 | 100-400 | 48 | 1.87 | 93 | 4000 | 87*52*29.5 | -- | | | |
| ZPR90-S24 | 90 | 85-305 | 100-400 | 24 | 3.75 | 93 | 4000 | 87*52*29.5 | -- | | | |
| ZPR90-S15 | 90 | 85-305 | 100-400 | 15 | 6 | 92 | 4000 | 87*52*29.5 | -- | | | |
| ZPR90-S12 | 90 | 85-305 | 100-400 | 12 | 7.5 | 92 | 4000 | 87*52*29.5 | -- | | | |

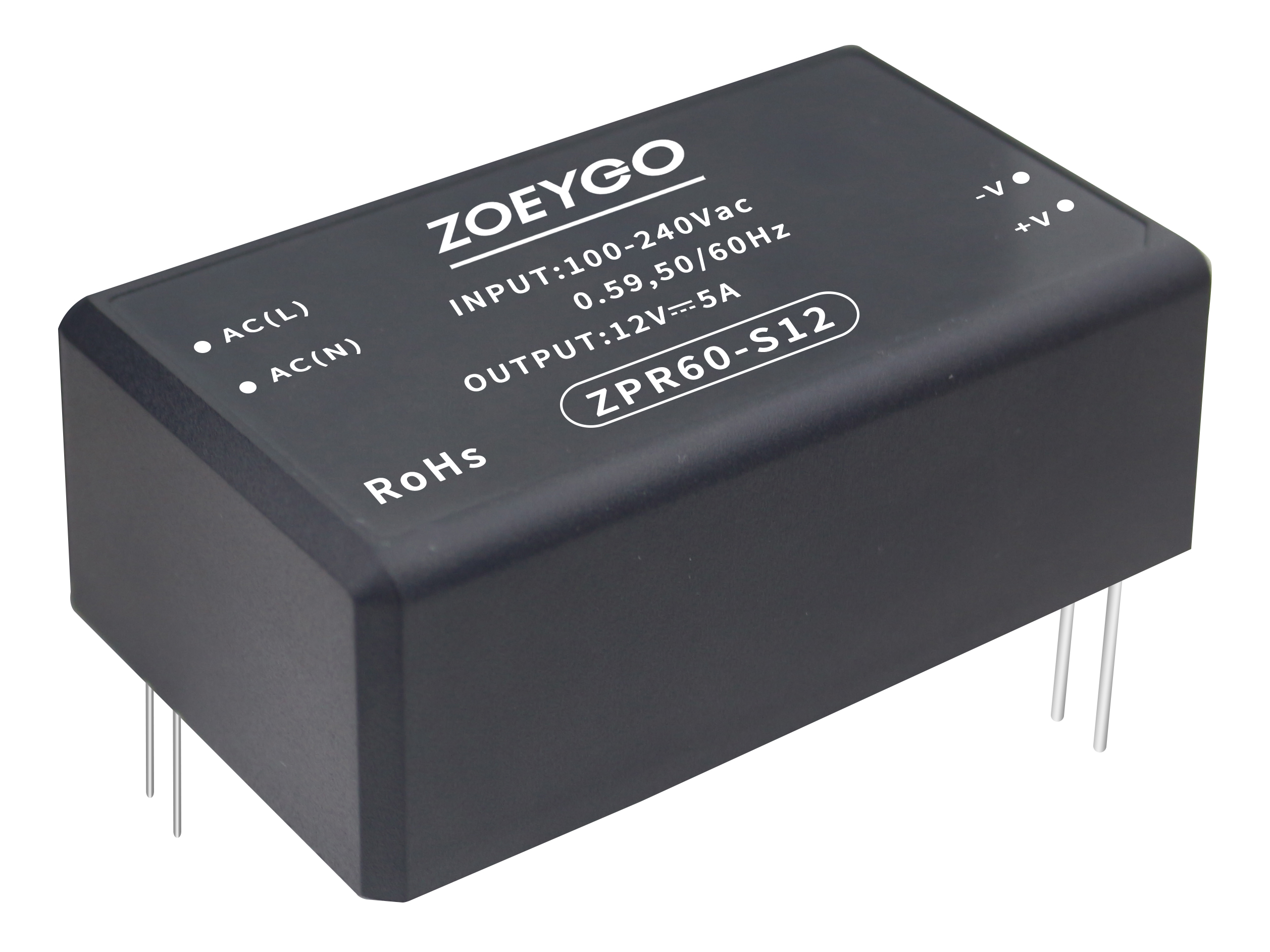

ZPR60-SXX ZPR60-SXX | 60 | 85-305 | 100-400 | 5-24 | 展開 | 展開 | 4000 | 87*52*29.5 | -- -- | -- | -- | -- |
| ZPR60-S24 | 60 | 85-305 | 100-400 | 24 | 2.5 | 91 | 4000 | 87*52*29.5 | -- | | | |
| ZPR60-S15 | 60 | 85-305 | 100-400 | 15 | 4 | 90 | 4000 | 87*52*29.5 | -- | | | |
| ZPR60-S12 | 60 | 85-305 | 100-400 | 12 | 5 | 89 | 4000 | 87*52*29.5 | -- | | | |
| ZPR60-S09 | 60 | 85-305 | 100-400 | 9 | 6.66 | 87 | 4000 | 87*52*29.5 | -- | | | |
| ZPR60-S05 | 60 | 85-305 | 100-400 | 5 | 12 | 84 | 4000 | 87*52*29.5 | -- | | | |
| ZPR45-SXX | 45 | 85-305 | 100-400 | 5-24 | 展開 | 展開 | 4000 | 87*52*29.5 | -- -- | -- | -- | -- |
| ZPR45-S24 | 45 | 85-305 | 100-400 | 24 | 1.87 | 90 | 4000 | 87*52*29.5 | -- | | | |
| ZPR45-S15 | 45 | 85-305 | 100-400 | 15 | 3 | 89 | 4000 | 87*52*29.5 | -- | | | |
| ZPR45-S12 | 45 | 85-305 | 100-400 | 12 | 3.75 | 88 | 4000 | 87*52*29.5 | -- | | | |
| ZPR45-S09 | 45 | 85-305 | 100-400 | 9 | 5 | 87 | 4000 | 87*52*29.5 | -- | | | |
| ZPR45-S05 | 45 | 85-305 | 100-400 | 5 | 9 | 83 | 4000 | 87*52*29.5 | -- | | | |

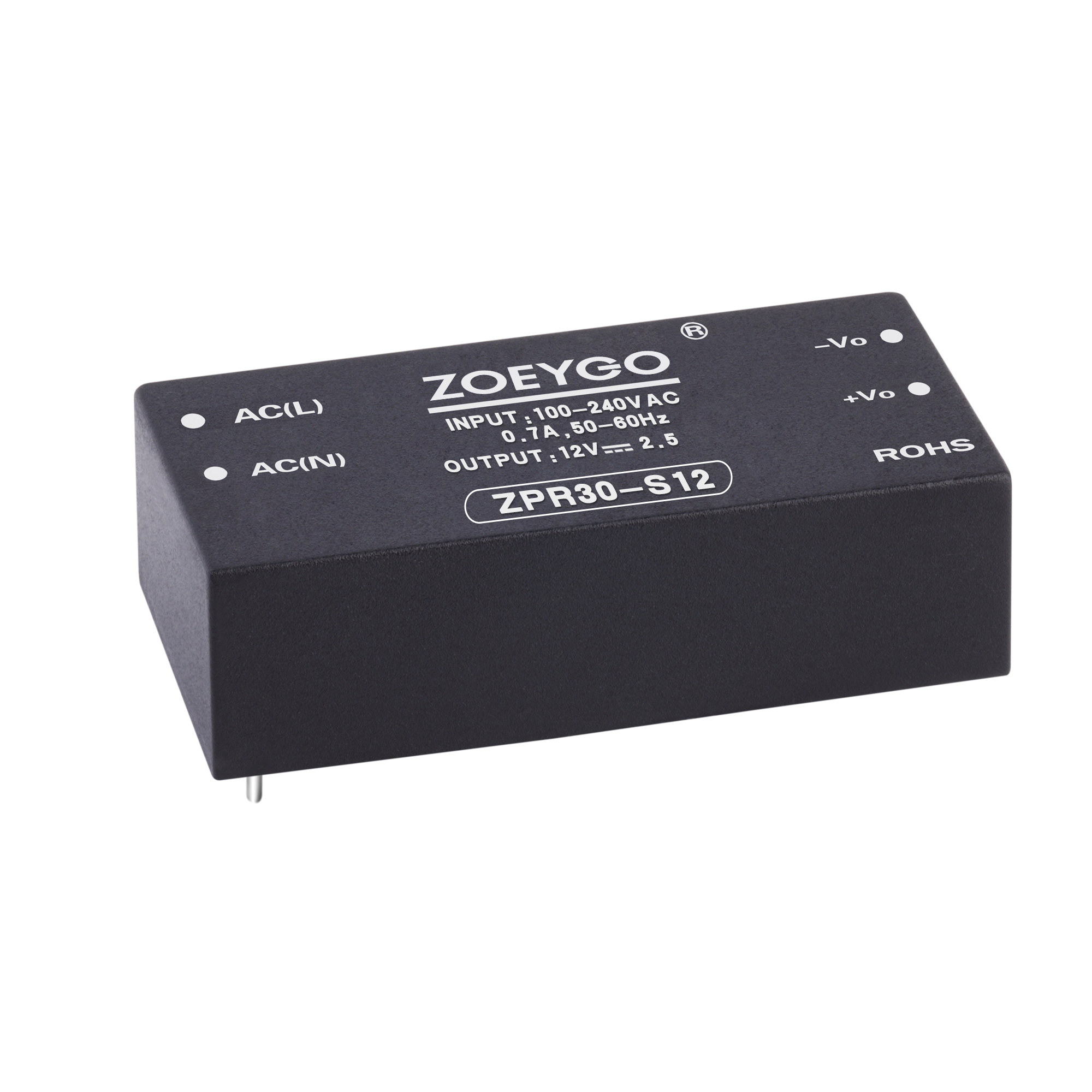

ZPR30-SXX ZPR30-SXX | 30 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 4000 | 69.5*35*24 | -- -- | -- | -- | -- |
| ZPR30-S24 | 30 | 85-264 | 100-370 | 24 | 1.25 | 90 | 4000 | 69.5*35*24 | -- | | | |
| ZPR30-S15 | 30 | 85-264 | 100-370 | 15 | 2 | 89 | 4000 | 69.5*35*24 | -- | | | |
| ZPR30-S12 | 30 | 85-264 | 100-370 | 12 | 2.5 | 87 | 4000 | 69.5*35*24 | -- | | | |
| ZPR30-S05 | 30 | 85-264 | 100-370 | 5 | 6 | 84 | 4000 | 69.5*35*24 | -- | | | |
| ZPR20-SXX ZPR20-SXX | 20 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 3000 | 51*25.5*15.5 | -- -- | -- | -- | -- |
| ZPR20-S24 | 20 | 85-264 | 100-370 | 24 | 0.83 | 89 | 3000 | 51*25.5*15.5 | -- | | | |
| ZPR20-S15 | 20 | 85-264 | 100-370 | 15 | 1.33 | 88 | 3000 | 51*25.5*15.5 | -- | | | |
| ZPR20-S12 | 20 | 85-264 | 100-370 | 12 | 1.66 | 87 | 3000 | 51*25.5*15.5 | -- | | | |
| ZPR20-S09 | 20 | 85-264 | 100-370 | 9 | 2.22 | 84 | 3000 | 51*25.5*15.5 | -- | | | |
| ZPR20-S05 | 20 | 85-264 | 100-370 | 5 | 3.5 | 85 | 3000 | 51*25.5*15.5 | -- | | | |
| ZPR15-SXXR2 ZPR15-SXXR2 | 15 | 85-305 | 100-400 | 5-24 | 展開 | 展開 | 3000 | 45*25.4*15.5 | -- -- | -- | -- | -- |
| ZPR15-S24R2 | 15 | 85-305 | 100-400 | 24 | 0.62 | 88 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR15-S15R2 | 15 | 85-305 | 100-400 | 15 | 1 | 88 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR15-S12R2 | 15 | 85-305 | 100-400 | 12 | 1.25 | 87 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR15-S09R2 | 15 | 85-305 | 100-400 | 9 | 1.66 | 85 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR15-S05R2 | 15 | 85-305 | 100-400 | 5 | 3 | 85 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR15-SXX ZPR15-SXX | 15 | 85-305 | 100-400 | 5-24 | 展開 | 展開 | 3000 | 51*25.5*15.5 | -- -- | -- | -- | -- |
| ZPR15-S24 | 15 | 85-305 | 100-400 | 24 | 0.62 | 88 | 3000 | 51*25.5*15.5 | -- | | | |
| ZPR15-S15 | 15 | 85-305 | 100-400 | 15 | 1 | 88 | 3000 | 51*25.5*15.5 | -- | | | |
| ZPR15-S12 | 15 | 85-305 | 100-400 | 12 | 1.25 | 87 | 3000 | 51*25.5*15.5 | -- | | | |
| ZPR15-S09 | 15 | 85-305 | 100-400 | 9 | 1.66 | 85 | 3000 | 51*25.5*15.5 | -- | | | |
| ZPR15-S05 | 15 | 85-305 | 100-400 | 5 | 3 | 85 | 3000 | 51*25.5*15.5 | -- | | | |
ZPR10-SXXR2 ZPR10-SXXR2 | 10 | 85-305 | 100-400 | 5-24 | 展開 | 展開 | 3000 | 39*25*22 | -- -- | -- | -- | -- |
| ZPR10-S24R2 | 10 | 85-305 | 100-400 | 24 | 0.42 | 84 | 3000 | 39*25*22 | -- | | | |
| ZPR10-S15R2 | 10 | 85-305 | 100-400 | 15 | 0.66 | 83 | 3000 | 39*25*22 | -- | | | |
| ZPR10-S12R2 | 10 | 85-305 | 100-400 | 12 | 0.83 | 81 | 3000 | 39*25*22 | -- | | | |
| ZPR10-S09R2 | 10 | 85-305 | 100-400 | 9 | 1.05 | 80 | 3000 | 39*25*22 | -- | | | |
| ZPR10-S05R2 | 10 | 85-305 | 100-400 | 5 | 2 | 76 | 3000 | 39*25*22 | -- | | | |
| ZPR10-SXX ZPR10-SXX | 10 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 3000 | 45*25.4*15.5 | -- -- | -- | -- | -- |
| ZPR10-S24 | 10 | 85-264 | 100-370 | 24 | 0.42 | 84 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR10-S15 | 10 | 85-264 | 100-370 | 15 | 0.66 | 83 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR10-S12 | 10 | 85-264 | 100-370 | 12 | 0.83 | 81 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR10-S09 | 10 | 85-264 | 100-370 | 9 | 1.05 | 80 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR10-S05 | 10 | 85-264 | 100-370 | 5 | 2 | 76 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR05-SXX ZPR05-SXX | 5 | 85-264 | 100-370 | 5-24 | 展開 | 展開 | 3000 | 45*25.4*15.5 | -- -- | -- | -- | -- |
| ZPR05-S24 | 5 | 85-264 | 100-370 | 24 | 0.21 | 84 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR05-S15 | 5 | 85-264 | 100-370 | 15 | 0.33 | 83 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR05-S12 | 5 | 85-264 | 100-370 | 12 | 0.42 | 81 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR05-S09 | 5 | 85-264 | 100-370 | 9 | 0.55 | 80 | 3000 | 45*25.4*15.5 | -- | | | |
| ZPR05-S05 | 5 | 85-264 | 100-370 | 5 | 1 | 76 | 3000 | 45*25.4*15.5 | -- | | | |
ZPR02-SXX ZPR02-SXX | 2 | 85-305 | 100-400 | 5-24 | 展開 | 展開 | 3000 | 32.5*20.5*15 | -- -- | -- | -- | -- |
| ZPR02-S24 | 2 | 85-305 | 100-400 | 24 | 0.08 | 78 | 3000 | 32.5*20.5*15 | -- | | | |
| ZPR02-S15 | 2 | 85-305 | 100-400 | 15 | 0.13 | 77 | 3000 | 32.5*20.5*15 | -- | | | |
| ZPR02-S12 | 2 | 85-305 | 100-400 | 12 | 0.16 | 76 | 3000 | 32.5*20.5*15 | -- | | | |
| ZPR02-S09 | 2 | 85-305 | 100-400 | 9 | 0.22 | 73 | 3000 | 32.5*20.5*15 | -- | | | |
| ZPR02-S05 | 2 | 85-305 | 100-400 | 5 | 0.4 | 70 | 3000 | 32.5*20.5*15 | -- | | | |

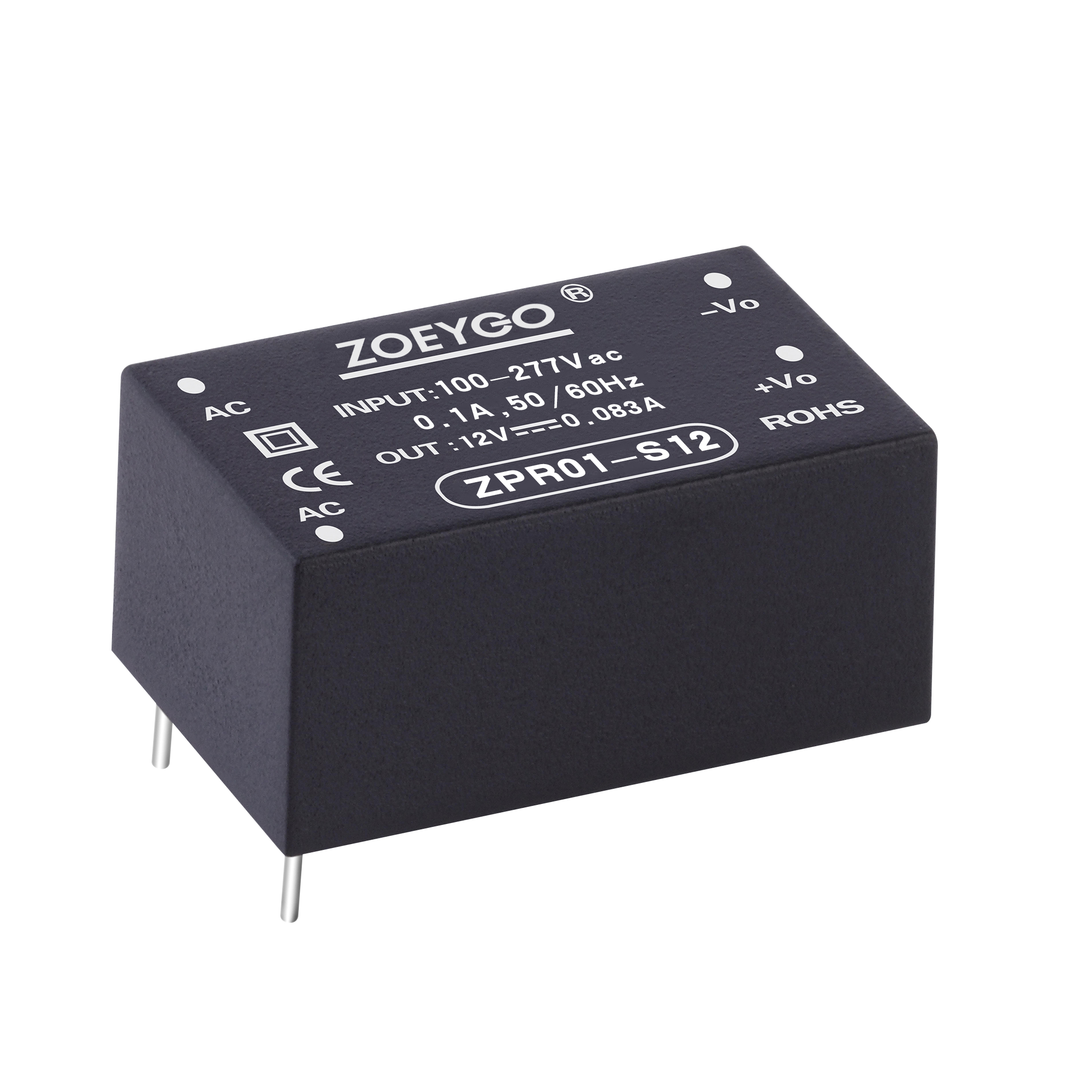

ZPR01-SXX ZPR01-SXX | 1 | 85-305 | 100-400 | 5-24 | 展開 | 展開 | 3000 | 32.5*20.5*15 | -- -- | -- | -- | -- |
| ZPR01-S24 | 1 | 85-305 | 100-400 | 24 | 0.041 | 78 | 3000 | 32.5*20.5*15 | -- | | | |
| ZPR01-S15 | 1 | 85-305 | 100-400 | 15 | 0.066 | 77 | 3000 | 32.5*20.5*15 | -- | | | |
| ZPR01-S12 | 1 | 85-305 | 100-400 | 12 | 0.083 | 76 | 3000 | 32.5*20.5*15 | -- | | | |
| ZPR01-S09 | 1 | 85-305 | 100-400 | 9 | 0.11 | 73 | 3000 | 32.5*20.5*15 | -- | | | |
| ZPR01-S05 | 1 | 85-305 | 100-400 | 5 | 0.2 | 70 | 3000 | 32.5*20.5*15 | -- | | | |

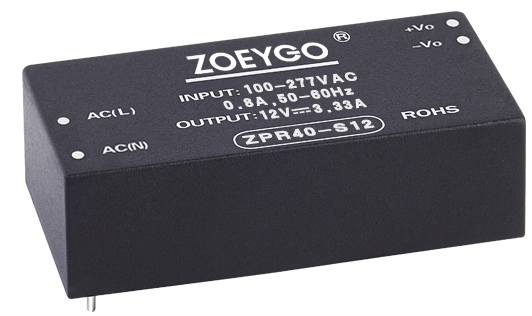

ZPR40-SXX ZPR40-SXX | 40 | 85-305 | 100-430 | 展開 | 展開 | 展開 | 展開 | 展開 | -- -- | -- -- | -- | -- |
